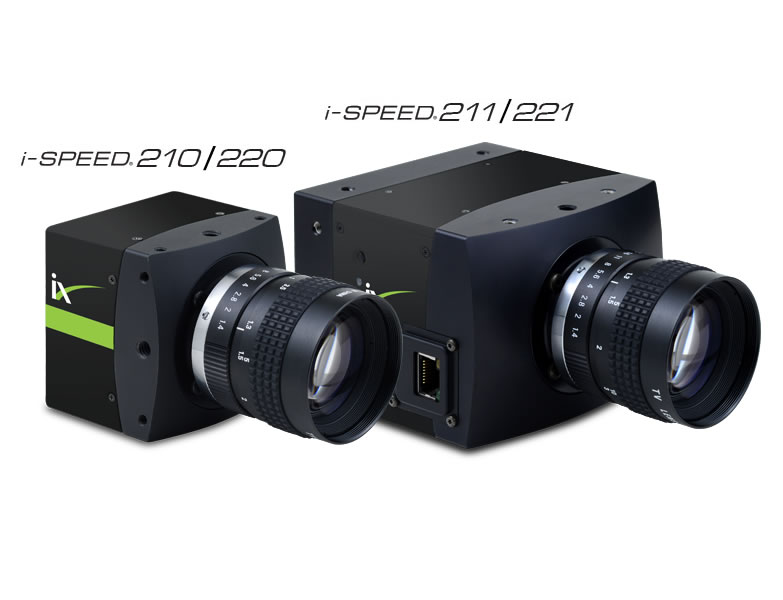

i-SPEED 2
紧凑小巧 便携易用 专业分析
i-SPEED 2系列的设计平衡了价格、速度、分辨率、外观等诸多因素，是预算有限的实验室、产线及工艺部门的理想选择。高敏感度的CMOS传感器可达百万像素的高速视频-满足大部分生命科学、机器人及机械运动的应用要求。全局曝光快门的应用使之成为一款真正的专业级高速摄像机--可精确记录复杂的旋转运动，但价格并不至于打破实验预算。
i-SPEED 211与221标配一块续航能力为1小时的电池，配合笔记本电脑可适应野外操作；选配Hi-G外壳使产品更加坚固耐用。

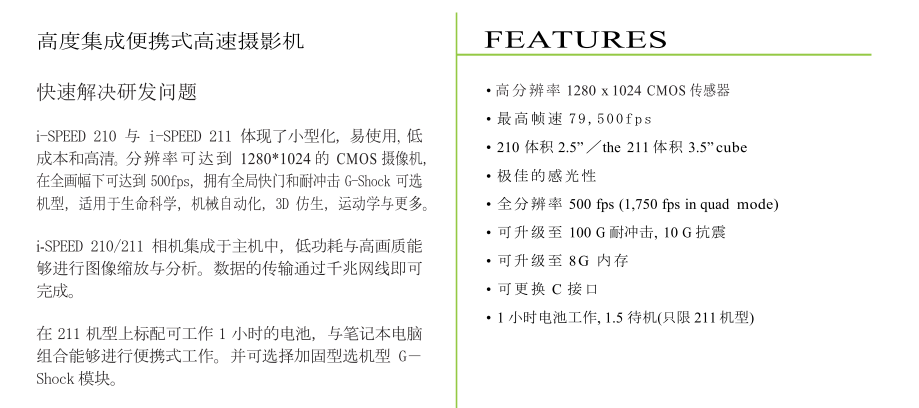

i-SPEED 210/211 分辨率1280*1024，最高帧速79,500fps

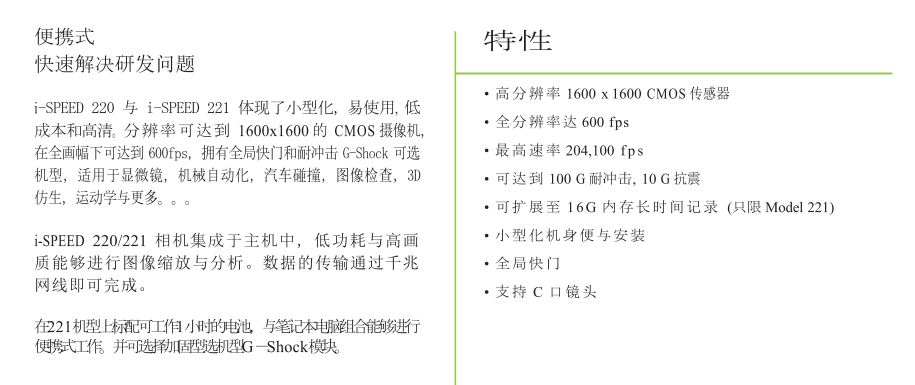

i-SPEED 220/221 分辨率1600*1600，最高帧速204,100fps

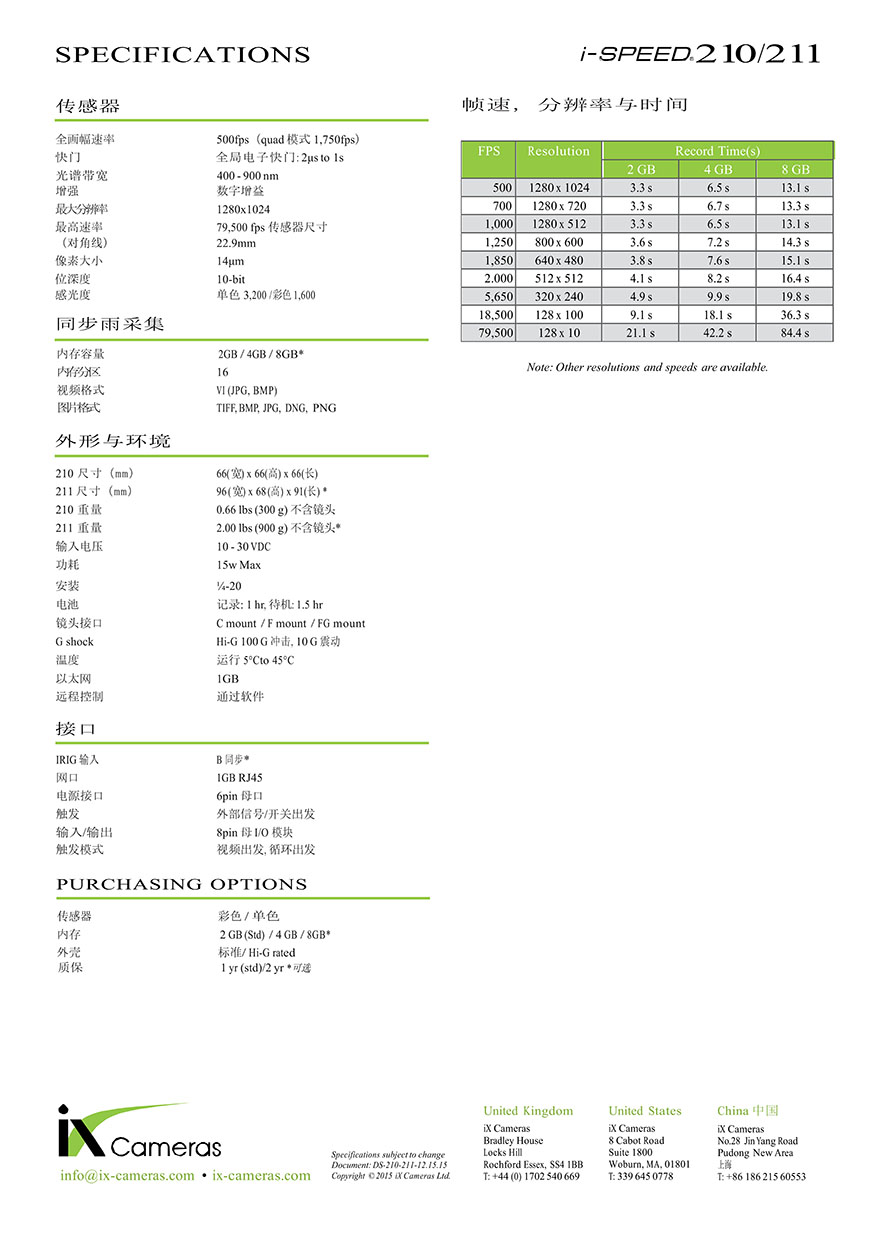

i-SPEED 210 - Frame Rates - Resolution - Recording Time(s)
| FPS | Resolution | 4 GB | 8 GB |
| 500 | 1280 x 1024 | 6.5 sec | 13.1 sec |
| 700 | 1280 x 720 | 6.7 sec | 13.3 sec |
| 1,000 | 1280 x 512 | 6.5 sec | 13.1 sec |
| 1,250 | 800 x 600 | 7.2 sec | 14.3 sec |
| 1,850 | 640 x 480 | 7.6 sec | 15.1 sec |
| 2,000 | 512 x 512 | 8.2 sec | 16.4 sec |
| 5,650 | 320 x 240 | 9.9 sec | 19.8 sec |
| 18,500 | 128 x 100 | 18.1 sec | 36.3 sec |
| 79,500 | 1280 x 10 | 42.2 sec | 84.4 sec |

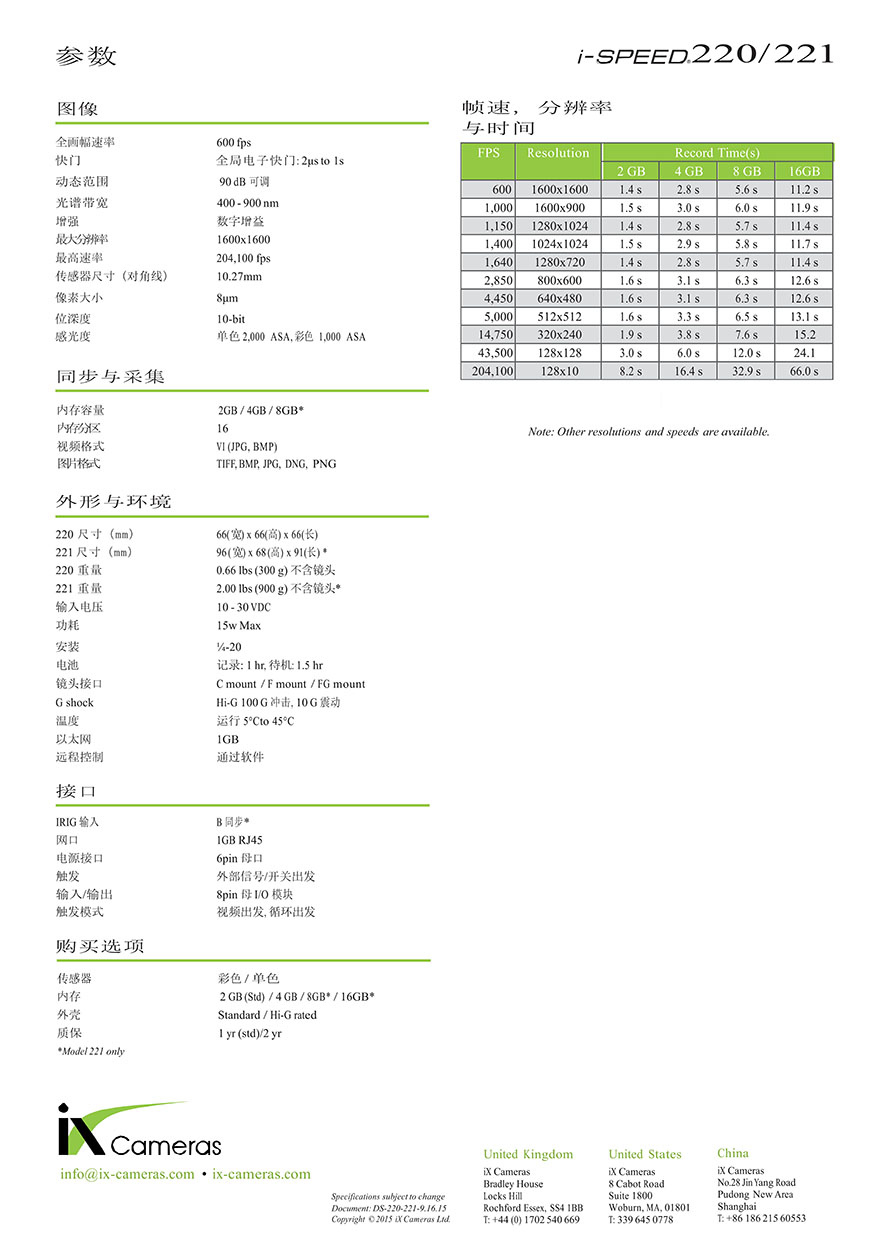

i-SPEED 220 - Frame Rates - Resolution - Recording Time(s)
| FPS | Resolution | 4 GB | 8 GB | 16 GB |
| 600 | 1600 x 1600 | 2.8 sec | 5.6 sec | |
| 1,000 | 1600 x 900 | 3.0 sec | 6.0 sec | 11.9 sec |
| 1,150 | 1280 x 1024 | 2.8 sec | 5.7 sec | 11.4 sec |
| 1,400 | 1024 x 1024 | 2.9 sec | 5.8 sec | 11.7 sec |
| 1,640 | 1280 x 720 | 2.8 sec | 5.7 sec | 11.4 sec |
| 2,850 | 800 x 600 | 3.1 sec | 6.3 sec | 12.6 sec |
| 4,450 | 640 x 480 | 3.1 sec | 6.3 sec | 12.6 sec |
| 5,000 | 512 x 512 | 3.3 sec | 6.5 sec | 13.1 sec |
| 14,750 | 320 x 240 | 3.8 sec | 7.6 sec | 15.2 sec |
| 43,500 | 128 x 128 | 6.0 sec | 12.0 sec | 24.1 sec |
| 204,100 | 128 x 10 | 16.4 sec | 32.9 sec | 66.0 sec |
